Wiring Harness

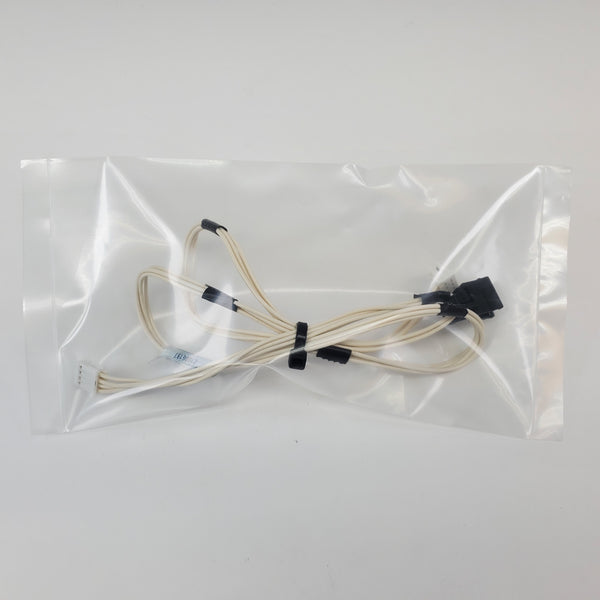

Images provided are generic stock images to the part #. Images are a good representation of the part you will receive.
W11627526 | Wiring harness | Whirlpool | Dishwasher | Wheel Assemblies / Transport Assemblies
$79.45 - $69.71
$9.74 $79.45
Part #: W11627526
Only 3 left in stock.
Manufacturer: Whirlpool
Part Dimensions: 1.50 x 1.50 x 6.75
Weight: 0.54 lb
SKU: 10000000370-R
Product Description
Wiring Harness Part Number W11627526
Whirlpool Dishwasher Wheel Assemblies / Transport Assemblies
Part Location in the Appliance: Inside the Door.
Part Location in the Schematic: Control Panel And Inner Door Parts
Part Function Description: Connects to the Control Panel.
Notes: Wiring Harness only.
Appliance Part Color: Black
Appliance Part Material: Plastic
Appliance Part Approximate Dimensions:
Height: 6.75″
Width: 3.00"
Length: 1.50"
Part Number W11627526 have replaced the compatible part numbers: W11231345, W11084865
Compatible Model Numbers: KDFM404KBS0 | KDFM404KBS1 | KDFM404KPS0 | KDFM404KPS1 | KDPM604KBS0 | KDPM604KBS1 | KDPM604KPS0 | KDPM604KPS1 | KDTM404KBS0 | KDTM404KBS1 | KDTM404KPS0 | KDTM404KPS1 | KDTM604KBS0 | KDTM604KBS1 | KDTM604KPS0 | KDTM604KPS1 | MDB4949SKB0 | MDB4949SKW0 | MDB4949SKZ0 | MDB7959SKZ0 | MDB7959SKZ1 | MDB8959SKB0 | MDB8959SKB1 | MDB8959SKK0 | MDB8959SKW0 | MDB8959SKW1 | MDB8959SKZ0 | MDB8959SKZ1 | MDB9959SKZ0 | MDB9959SKZ1 | MDB9979SKZ0 | MDB9979SKZ1 | WDT740SALB0 | WDT740SALW0 | WDT740SALZ0 | WDT750SAKB0 | WDT750SAKV0 | WDT750SAKW0 | WDT750SAKZ0 | WDT970SAKV0 | WDT970SAKZ0 | WDTA50SAKB0 | WDTA50SAKT0 | WDTA50SAKV0 | WDTA50SAKW0 | WDTA50SAKZ0 | WDTA80SAKZ0
Warranty Type: Electronic
Direct Customer's 30 Day Electronic Parts Warranty
Electronic Parts may be eligible for our 30-Day Electronic Parts Limited-Warranty coverage.
Purchase Direct - Get The Perks! Parts and Items purchased directly through NeuApplianceParts.com are eligible for our direct warranty coverages. Parts purchased through Ebay, Amazon or other sales channels or mediums are not eligible for any of the following warranties.
Return Policy
Convenient 30-Day Return Policy. Read more to learn about our return policies.
Compatibility
Enter Your Model Number
to check compatibility:
Condition
Certified Refurbished Condition
- Thoroughly inspected to Manufacturer Specifications and Fully Refurbished if needed. This part is 100% functional with no issues.
- This part is cosmetically in Good Condition with Limited Signs of scratches, blemishes, dents, scuffs or other signs of use or damage.
- May have been previously used.
- May or may not come with the original manufacturer packaging.
- Photos provided are stock images to set expectations and not of the actual part you will receive.
