This V-M (Vertical Modular) platform is everywhere. If you run a repair route anywhere in America, you will see three of these a week. The profit isn't just in the labor; it's in having the right part on your truck. In this breakdown, Lead Tech Gabriel strips this unit down to show you exactly what fails, so you can stock up and close the ticket on the first visit.
/// TOOLS YOU'LL NEED
- ¼" Nut Driver (The MVP)
- Putty Knife (Stiff blade)
- Small Flathead Screwdriver
- T20 Torx Driver
- 11mm Socket
- Spanner Wrench + Sledgehammer
STEP 1: Console Access & Lid Lock Replacement

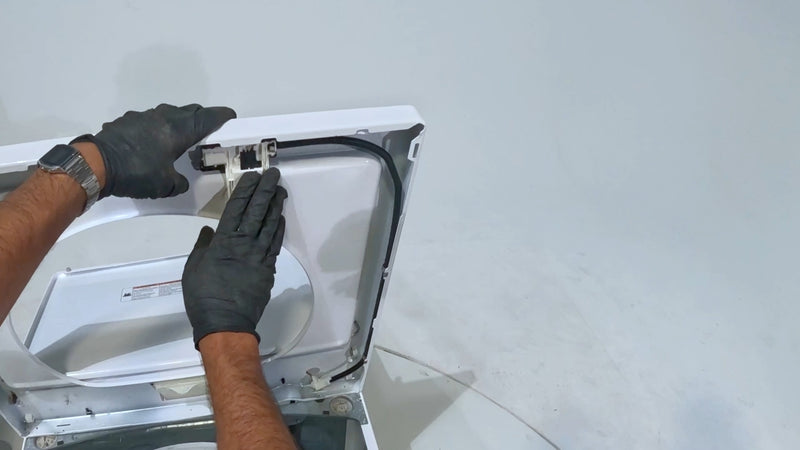

Start at the back of the machine. Remove the three ¼" screws securing the console. Slide the console forward and flip it up (use a putty knife on the front clips if it's stuck). Tech Tip: If the washer clicks 3 times and won't start, the Lid Lock is dead. To remove it, slide the mechanism to the right with your thumb to release it from the chassis.
STEP 2: Top Deck Removal & Water Valve

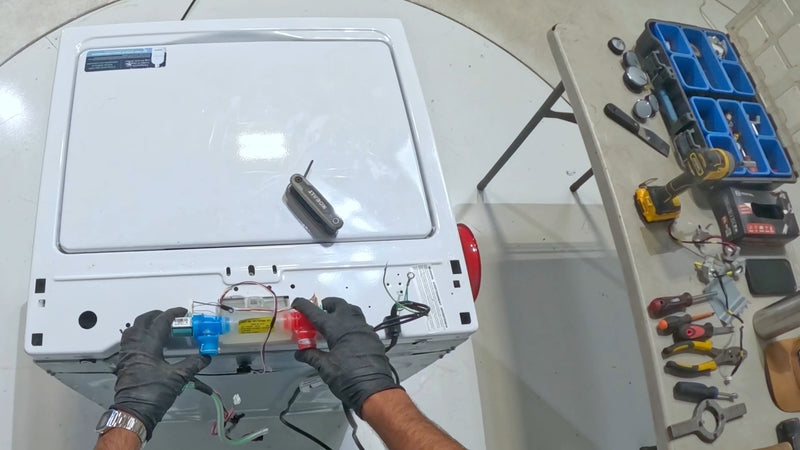

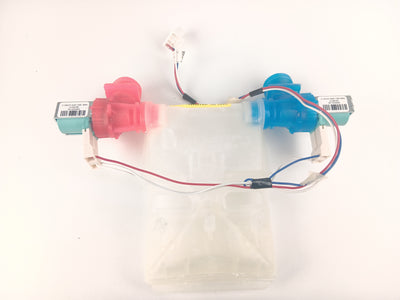

Disconnect the main harness clips and the pressure switch hose (fill tube) on the left. Use a T20 Torx driver to remove the Water Inlet Valve screws on the back. Lift the entire top deck up and off the cabinet. Tech Tip: If the washer is filling slowly or not at all, check the solenoids on the valve for cracks.
STEP 3: Agitator, Drive Block & Suspension

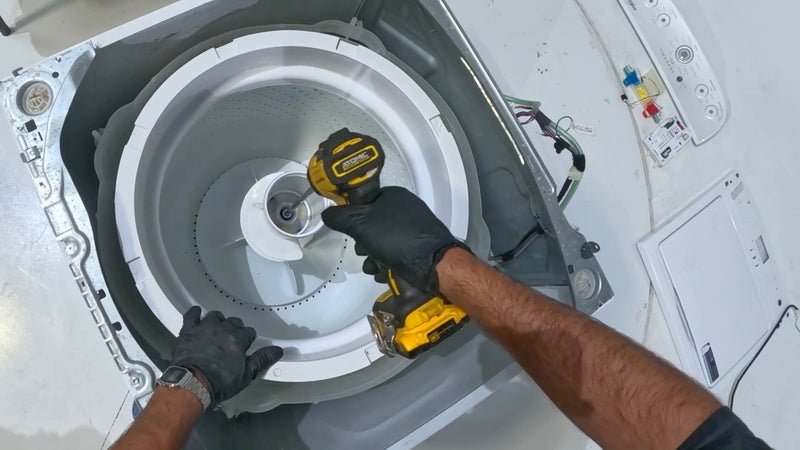

Remove the softener cap and the 11mm agitator bolt. The Spanner Nut: Use your spanner wrench and a 4lb sledgehammer. Strike to the left to break the nut loose. Remove the basket. Suspension: With the weight gone, lift the suspension rods, turn the ball joint 90°, and drop them out. Replace these if the unit goes off-balance easily.
⚠️ STEP 4: The Drive System (Splutch & Actuator)

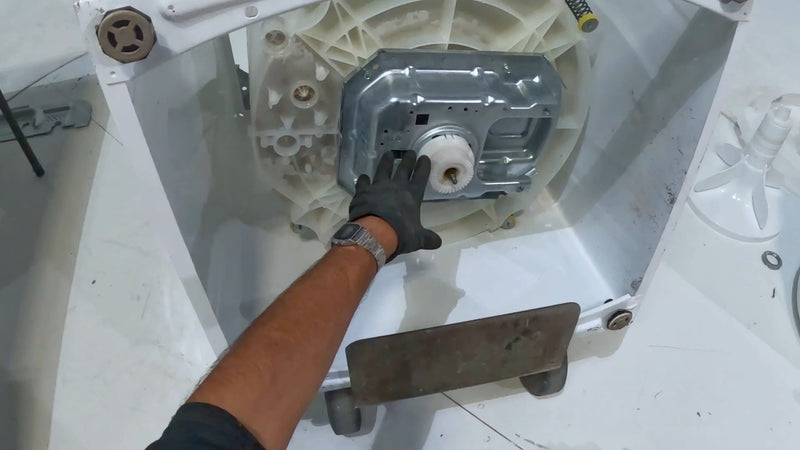

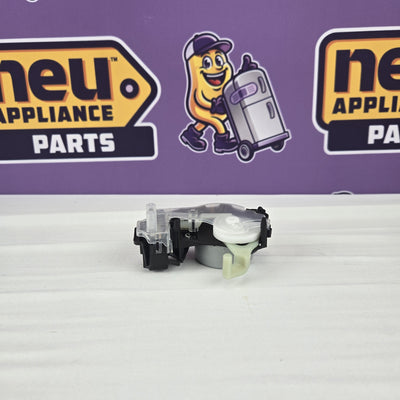

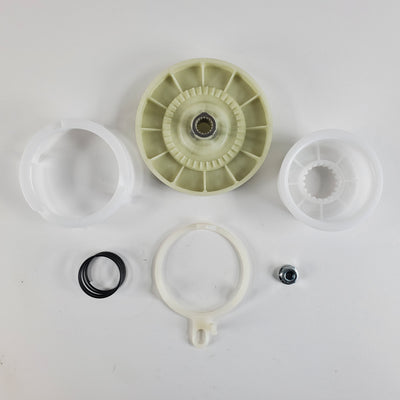

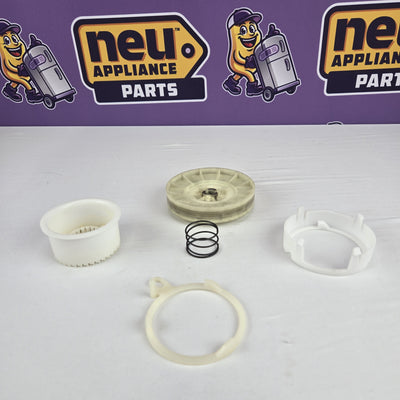

Lay the unit on its back. Remove the belt guard (5/16"). Shift Actuator: Check the plastic "swing arm." If it moves freely, the optical sensor is dead. The "Splutch" (Cam Kit): Remove the pulley nut. If you see white plastic shavings on the floor, the cam teeth are ground down. This is the #1 failure on this unit.
STEP 5: Motor, Capacitor & Gearcase

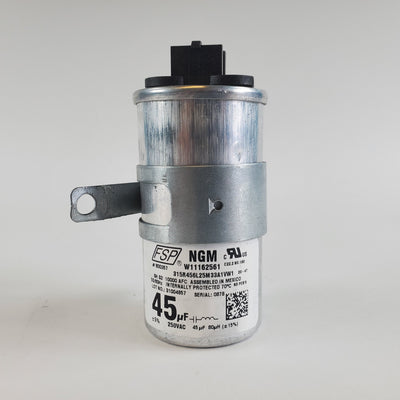

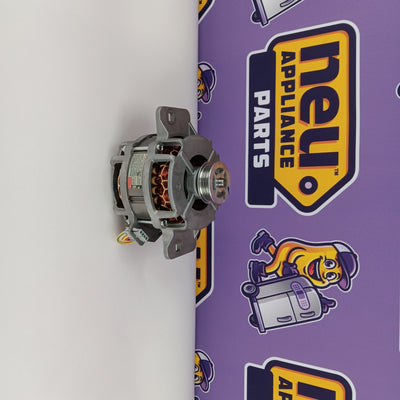

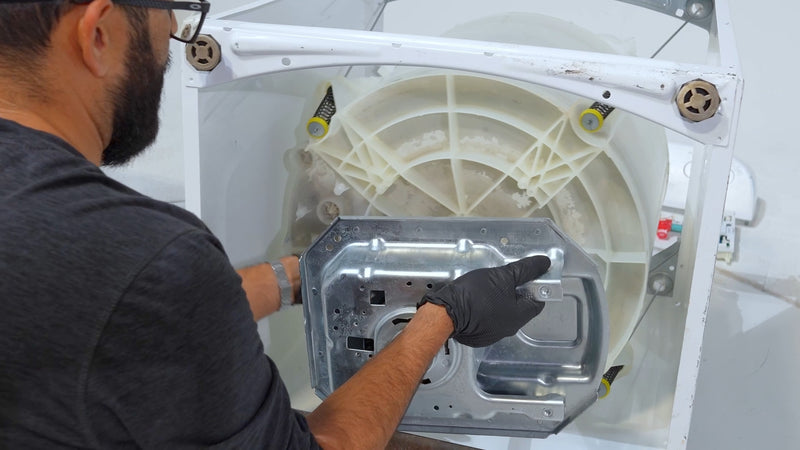

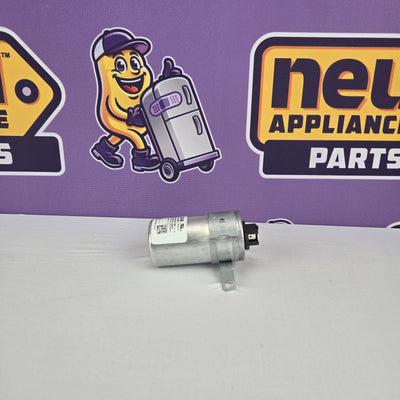

Motor: If the motor is hot to the touch but won't turn, check the Capacitor first. Gearcase: Held by four 10mm bolts. Look for oil leaking from the shaft seal. If the shaft is bent or leaking, pull it straight out and replace.
🏁 The Final Step: Job Well Done
CRITICAL WARNING: Whirlpool V-M (Vertical Modular) washers are computer-controlled. Whenever you replace a mechanical part like the Actuator, Splutch, or Suspension, the control board needs to 're-learn' the machine.
You MUST run the Calibration Cycle. If you skip this, the washer might still act crazy, and you'll think the part was bad. It wasn't. It just needs to be calibrated.
How to Calibrate:
With the machine empty and plugged in...
Turn the main knob: Left, Right, Right, Right, Left, Right. (Do this within 6 seconds).
All lights should flash. Turn the knob right until just the 'Rinse' light is on.
Press Start. The machine will run a 2-4 minute test. Once it's done, you are ready to wash.
