Stop guessing why this Samsung is banging against the cabinet or throwing error codes. Whether you’re swapping a stripped gearcase or just need to deep clean the "bio-film" out of the outer tub, you need to strip this machine down to the frame fast. We’re going to tear this top-loader down to the absolute bare bones so you can fix the problem, get paid, and get out.
/// TOOLS YOU'LL NEED
- Phillips Screwdriver
- Small Flathead Screwdriver
- Pick Tool
- 10mm Socket/Wrench
- 17mm Socket (for Rotor nut)
- 36mm Deep Well Socket (for Tub Nut)
- Impact Driver (Highly Recommended)
- Needle Nose Pliers
- Automotive Trim Tool (for wire clips)
- Pry Bar

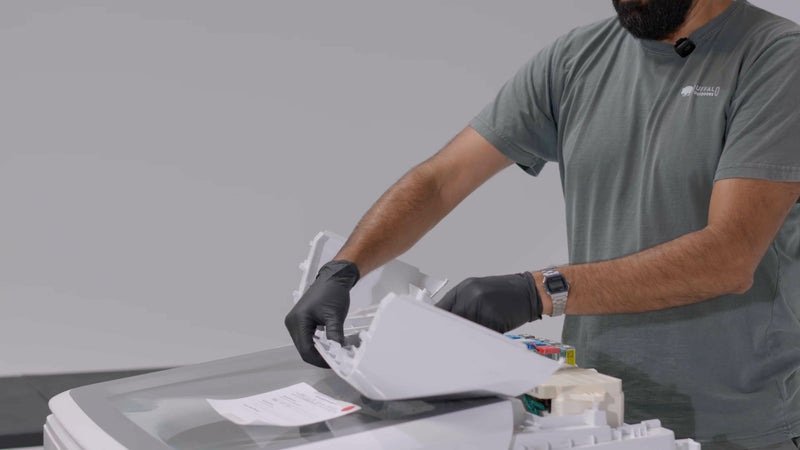

STEP 1: Back Panel & PCB Disconnect

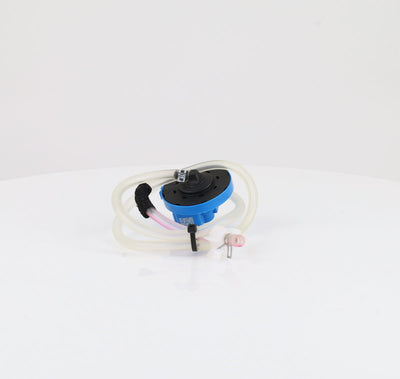

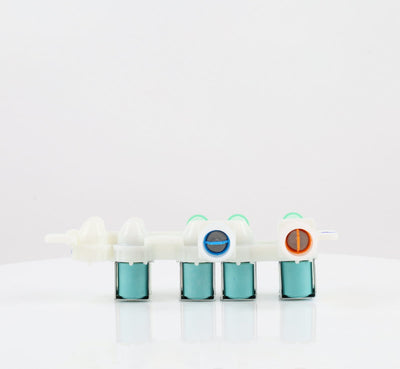

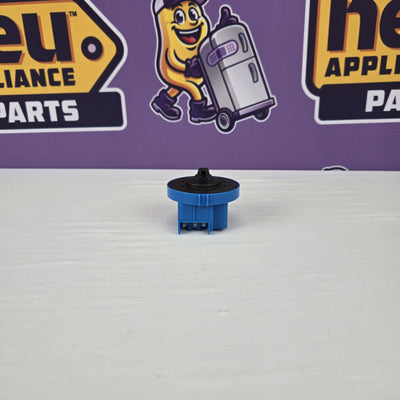

Start at the back. Remove the screws holding the rear control console panel. Once that panel is off, you’re looking at the "brains." You need to disconnect the pressure sensor tube (squeeze the clip, don't yank it), the water valves, and the main harness blocks. Tech Tip: Don’t forget the grounding strap screwed to the cabinet; if you miss this, the machine won't be grounded when you reassemble.

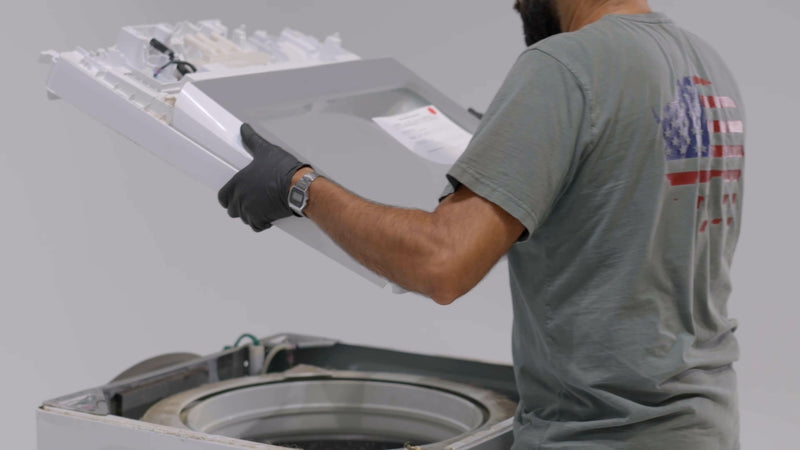

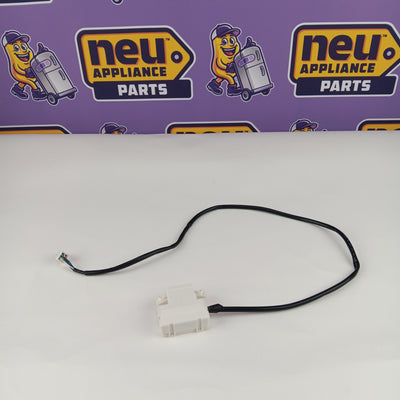

STEP 2: Top Deck & Lid Removal
To get the top off, you have to kill the lid first. Open the lid and pop out the two rubber "goggles" (screw covers) near the hinges to reveal the mounting screws. Remove those, and the entire glass lid lifts off. Now, remove the two Phillips screws at the back and the screws at the front (under the little caps) to release the entire top deck. Don't rip it off yet—you still have the lid lock wire connected. Disconnect it and set the top deck aside.

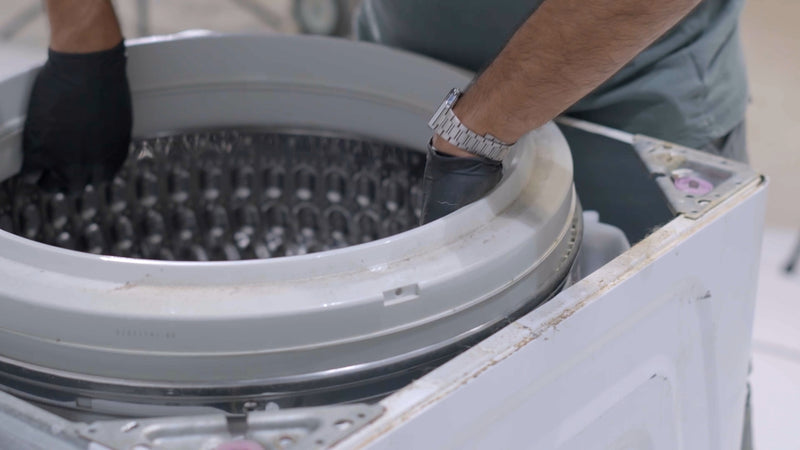

⚠️ STEP 3: Basket Access (Pulsator & Tub Nut)
Time to get into the pit. Use a small pick to pop the cap off the center wash plate (pulsator). Remove the bolt holding the plate down and lift the plate out. If it’s stuck, you might need two pick tools to "walk" it up. Now you’re staring at the 36mm Hub Nut. STOP: Do not try this with a wrench. Grab your impact driver and a 36mm socket. It’s standard thread (lefty-loosey), but it will be seized tight. Blast it off, remove the washer, and the basket is free.

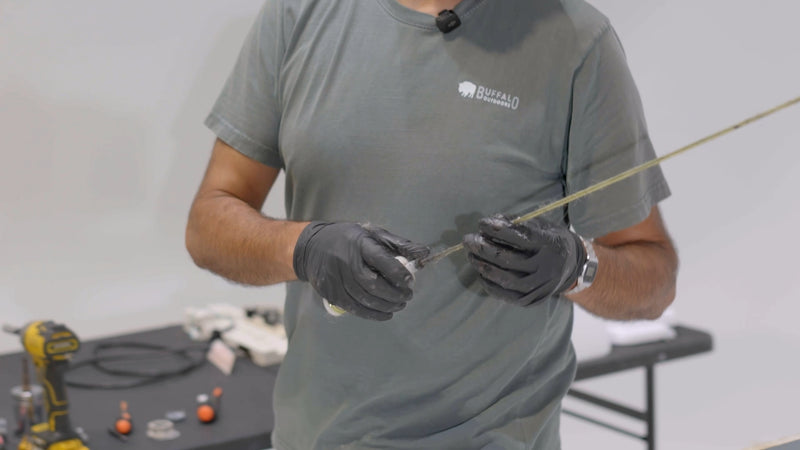

⚠️ STEP 4: Suspension & Outer Tub Removal

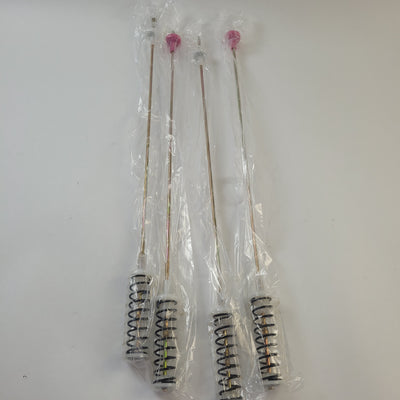

Samsung actually did us a favor here. The suspension mounts have "slots" in the top bracket. Lift the rod, slide it through the slot, and the tub drops free—no tools required for the rods themselves. Once the four rods are unhooked, lean the cabinet back and pull the entire outer tub assembly forward and out of the frame. This is the moment you check those rods; if the tub was banging like a drum solo, these are your culprits.

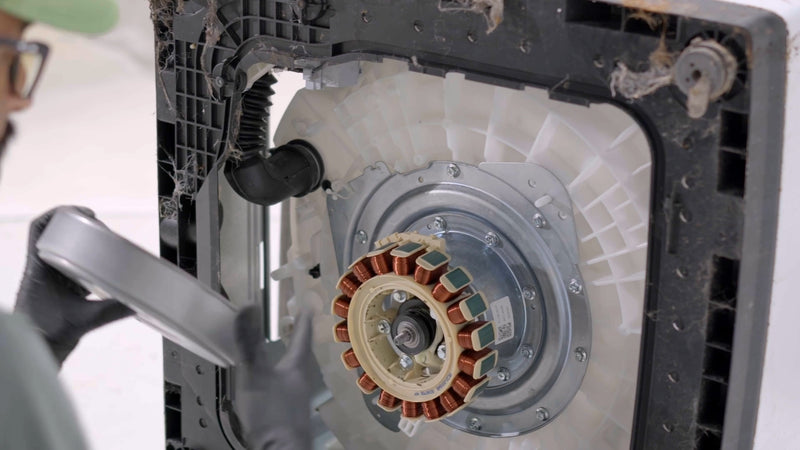

⚠️ STEP 5: The Bottom End (Motor, Clutch & Pump)
Flip the tub on its side or upside down (protect the floor!). You’re now looking at the mechanical drive train. Use a 17mm socket to remove the Rotor (magnet), then 10mm bolts to drop the Stator (coils). This exposes the Gearcase. You’ll also see the Shift Actuator (Clutch) held on by two screws—remove the cotter pin to release the arm. Finally, the drain pump is right there on the frame; 3 screws and it’s out.
