Time is money, and this Maytag MED7230HW is a common ticket on the daily route. Whether you're chasing a squealing idler pulley or a "no heat" dead end, we’re stripping this unit down to the frame to show you exactly where the profit hides. We’ll cover the blind-reach belt removal and why you never, ever cheap out on rollers.
/// TOOLS YOU'LL NEED
- 1/4" Nut Driver
- Putty Knife / Flat Blade
- Phillips Screwdriver
- Torx T20 Driver
- 5/16" Flip Socket or Driver
- 3/8" Socket (for Idler Pulley)
- Multimeter (for Continuity Testing)
- Impact Driver (Optional but recommended for speed)

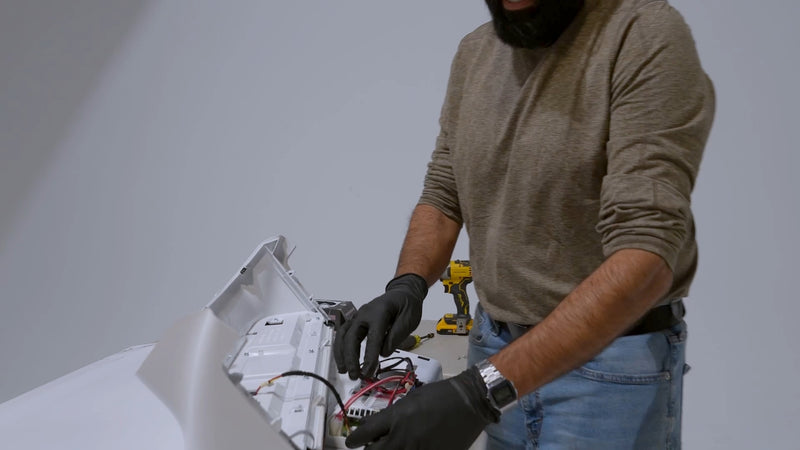

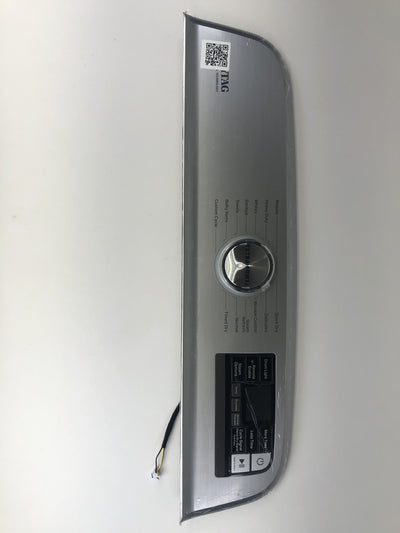

STEP 1: Top Deck & UI Board Breakdown
Start at the rear with your 1/4" driver to release the top panel screws. You'll need a putty knife to pop the spring clips between the lid and the UI board—feel for the resistance and push forward. Tech Tip: Be extremely gentle with the UI ribbon cable; the retaining tab is fragile, and snapping it turns a profitable repair into a board replacement nightmare. Pinch the control board tabs to release the harness and remove the center 1/4" screw to clear the electronics.

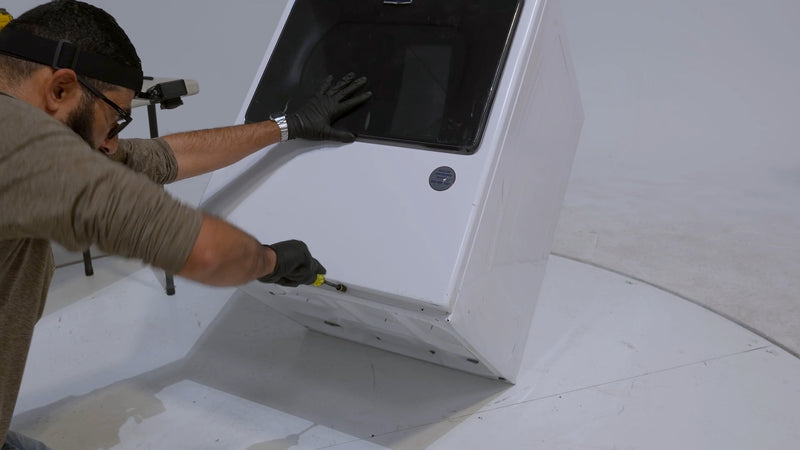

STEP 2: Front Panel & Door Assembly Removal
Gravity is your enemy here—remove the four 1/4" screws at the bottom of the front panel first so the door doesn't swing down on you later. Open the door to hit the hidden Phillips screws near the lint trap, then switch to your T20 Torx for the top two fasteners. Disconnect the door switch harness and lift the entire assembly off. This exposes the bulkhead and blower housing.

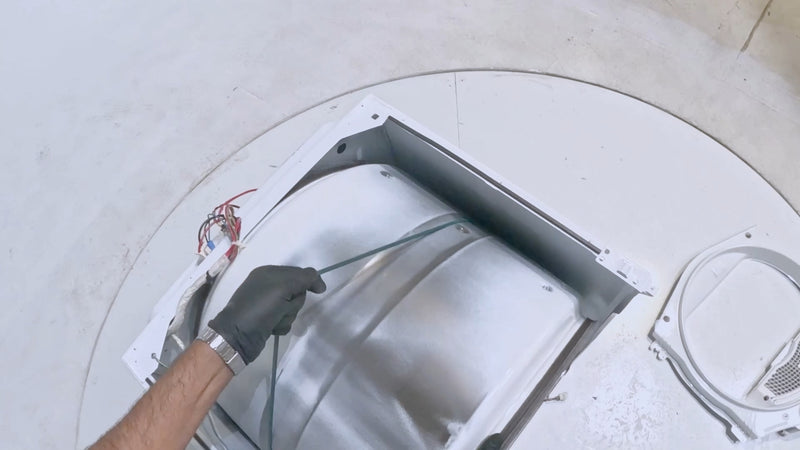

STEP 3: Bulkhead & Drum Extraction

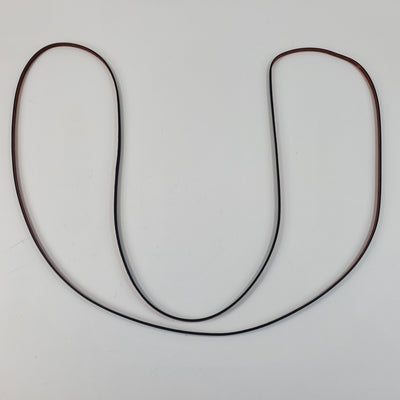

Disconnect the moisture sensor bar and remove the bulkhead screws (four total, usually 1/4"). Now for the blind reach: reach under the drum to the left, push the idler pulley to the left to slacken the belt, and slip it off the motor pulley. Once the tension is gone, use the belt to guide the drum out of the cabinet. You now have full access to the floor of the machine.

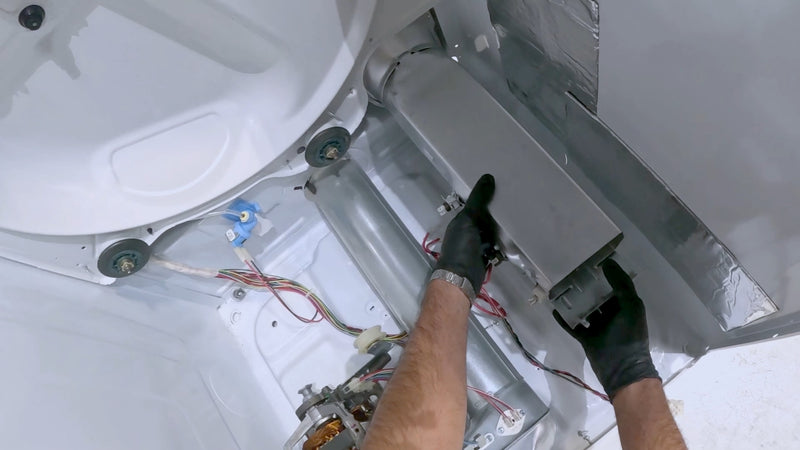

⚠️ STEP 4: The Heat Circuit (Element & Thermostats)

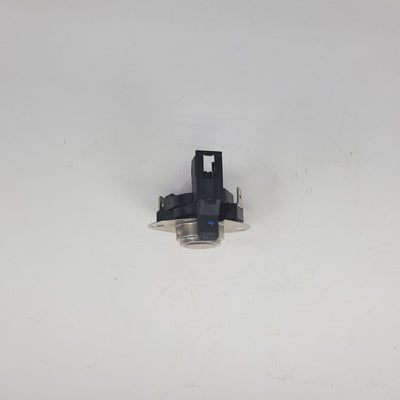

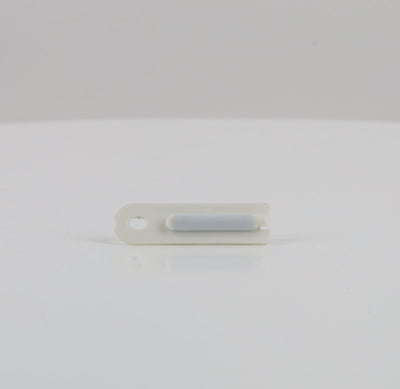

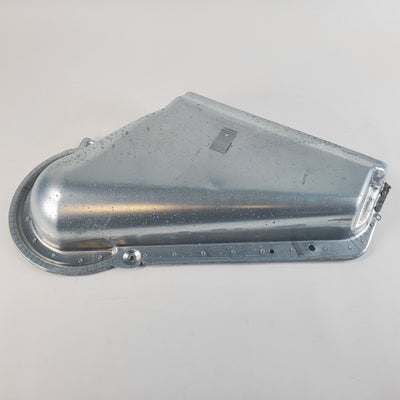

The heating element assembly is on the right side. Remove the 1/4" mounting screw (a short driver helps in tight clearance) and pull the "clamshell" housing. Visually inspect the coils for breaks or cracks in the ceramic insulators. Use your multimeter to test for continuity across the High Limit Thermostat and Thermal Cutoff. If you hear the "beep," you're good; if not, replace the set.

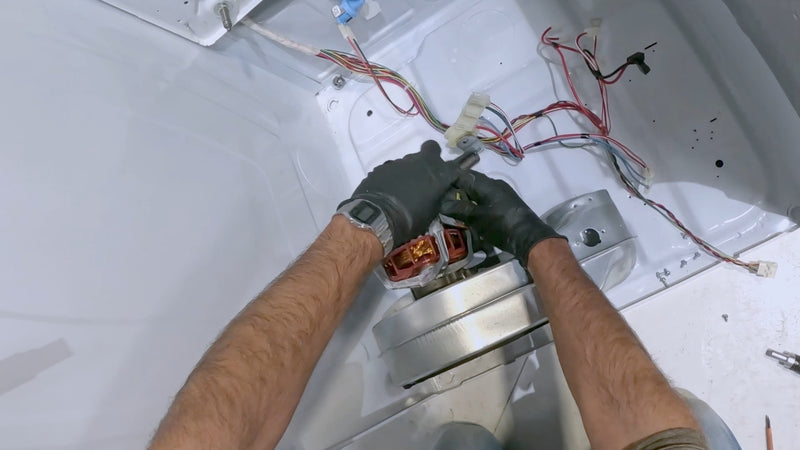

⚠️ STEP 5: The Squeal Killers (Rollers, Idler, Motor)

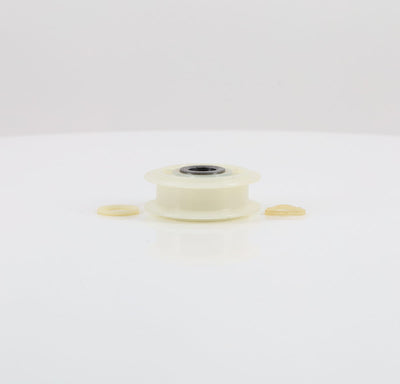

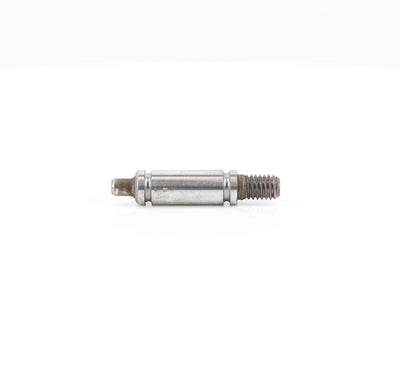

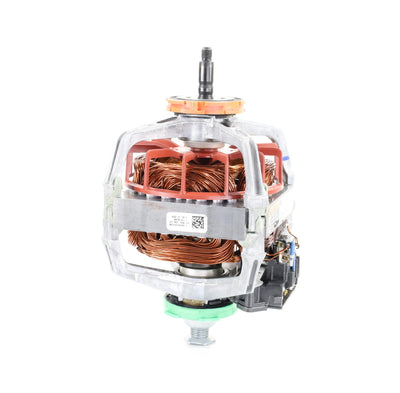

This is where the noise—and the money—lives. Inspect the support rollers for flat spots or seized bearings; if the shaft is scored, replace it or you'll be back in a month. The Idler Pulley (#279640) is a notoriously high-failure item; if it's locked up or squealing, swap it out using a 3/8" socket. Finally, check the blower wheel for debris or broken fins, which causes vibration.
🏁 The Final Step: Job Well Done
Ready to fix it properly?
SHOP ALL PARTS FOR THIS UNITGABE'S PARTS LOADOUT
The exact OEM parts and tools used in this breakdown.

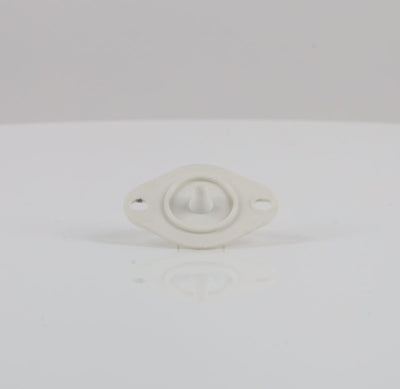

Whirlpool WP8577274 Dryer Misc. Parts Replaces 3390292 3406294 3976615 772546 8577274

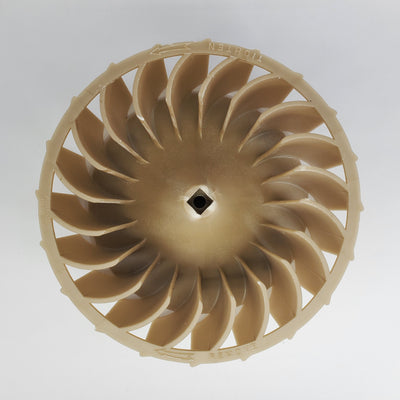

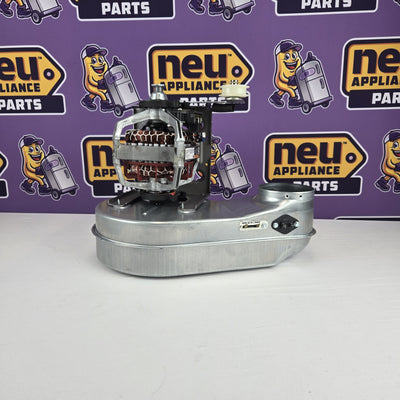

Whirlpool WP697772 Dryer Blow Wheels Replaces 697772 WP697772VP
