Complete Teardown Guide: GE GTD65EBSJWS (and most GE/Hotpoint 27" electric dryers)
Complete Teardown Guide: GE GTD65EBSJWS
(and most GE/Hotpoint 27" Electric Dryers)
The teardown every tech has been waiting for – no skips, no tricks, just pure profit
Repair University | NEU Appliance Parts
The GE GTD65EBSJWS is one of the most common electric dryers on the market — and also one of the most profitable once you know the five failures that account for 95 % of service calls.
Tools You’ll Need
- ¼″ nut driver (90 % of the job)
- Phillips #2 (long & short)
- Small flat screwdriver (diagnostic port)
- Needle-nose pliers
- Shop vac / leaf blower (lint apocalypse)
Step 1 – Back Panel & Control Board Access

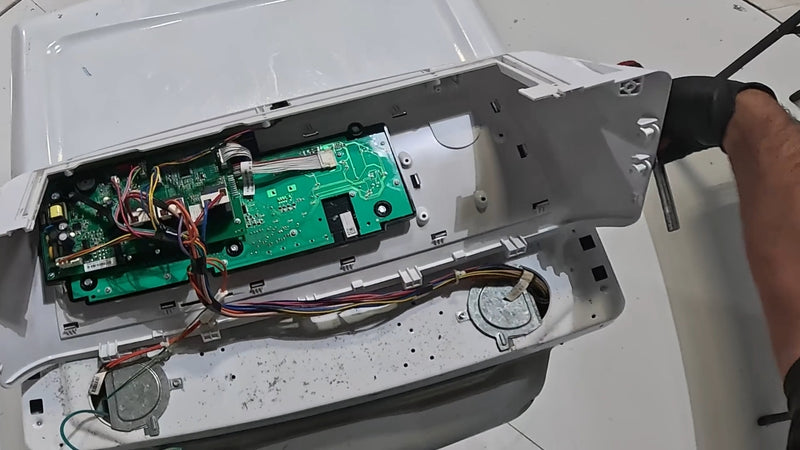

Six ¼″ screws on the rear cover → lift off. Remove heat shield (one ¼″ screw). Two long ¼″ screws hold the console — slide back and flip up. Pinch connectors + diagnostic port (small screwdriver to release). Control board & UI board are the #2 no-start / random error culprit.
Step 2 – Top Panel Lift
Two long Phillips at rear corners → lift rear of top and slide back.

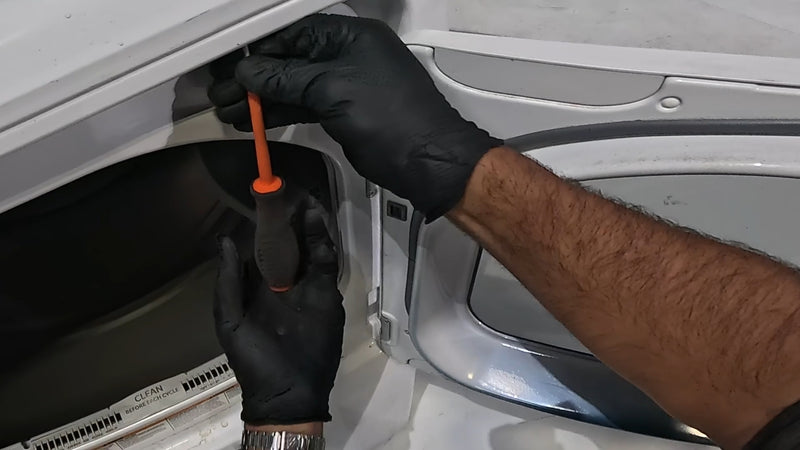

Step 3 – Front Panel & Door Removal
Open door — two Phillips at top inner lip. Tilt front forward, disconnect door switch, LED bulb, and moisture sensor. Lift off bottom hooks.
Step 4 – Front Bearing & Slides (The #1 Money Failure)

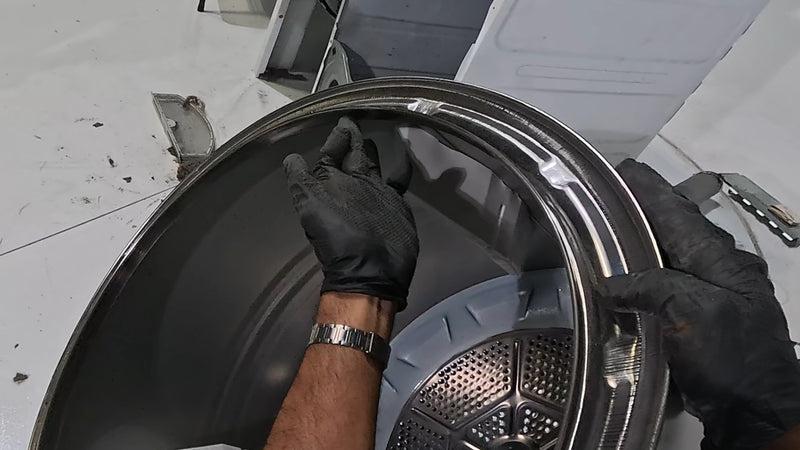

Four Phillips inside door opening → lift lint trap housing out. Front bearing held by four screws. Four slides — if they’re worn or missing, the drum eats the bearing. Replace slides BEFORE you hear squealing or you’re buying the whole $280 bearing.
Step 5 – Drum & Belt Removal

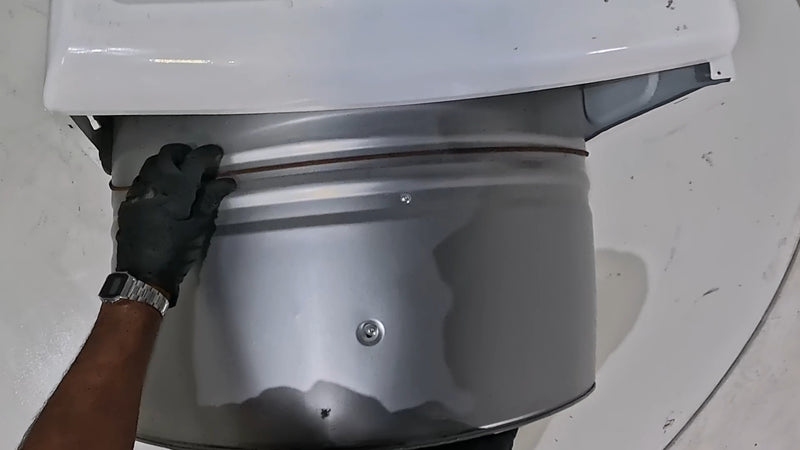

Push tensioner pulley right → slip belt off motor pulley. Lift drum and walk forward out.
Step 6 – Heating Element & Purple Wire

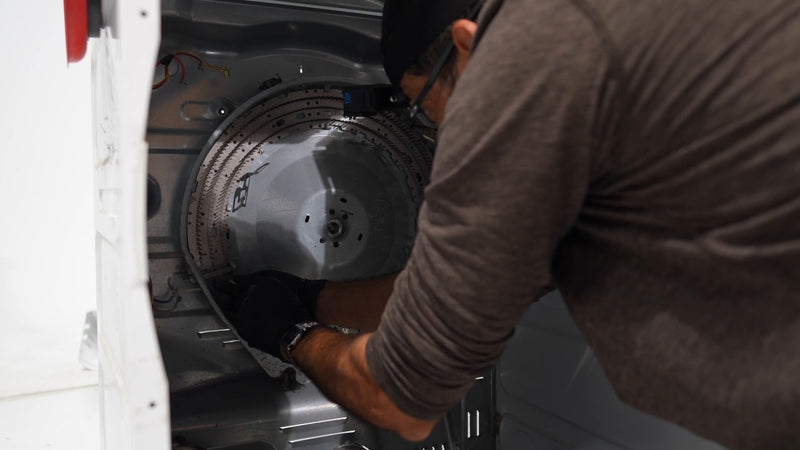

Four ¼″ screws hold element housing to rear. Famous purple wire snaps right at the terminal — no heat, but everything else works. Aftermarket purple wire repair kit or full element replacement.
Step 7 – Motor + Blower + Thermal Sensors

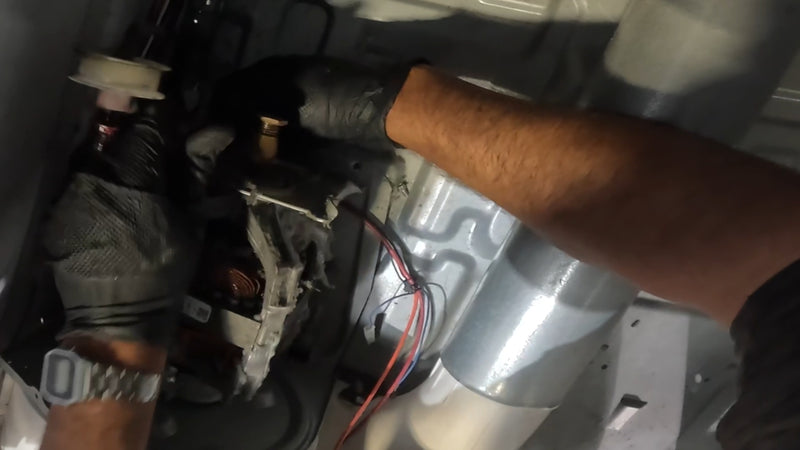

Four ¼″ screws hold motor clamp. Disconnect harnesses → slide motor left and out. Blower housing is always packed with lint — clean or replace wheel if damaged.
Step 8 – Belt Tensioner & Door Catch

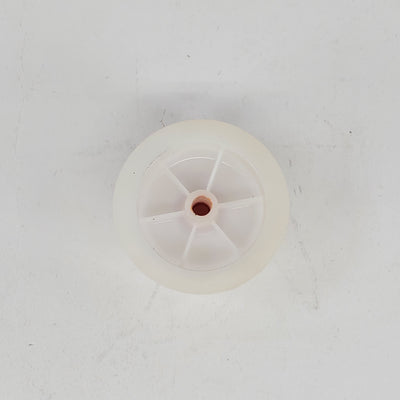

Belt tensioner pulley rarely fails but easy to replace when motor is out. Plastic door catch snaps constantly — $12 part.
Most Common Failures & Parts We Stock

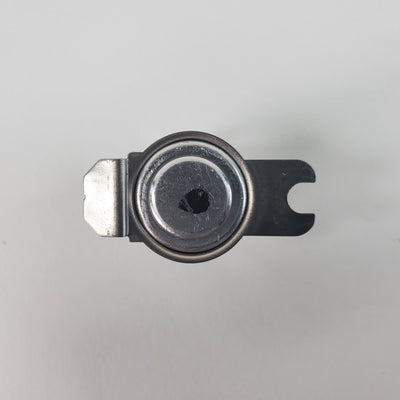

- Front bearing + slides – WE03X23956 / WE03X37320
- Heating element –
WE11M10001

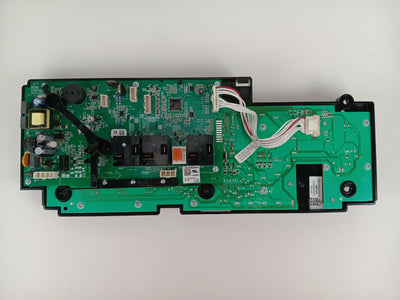

- Control board – WE22X35978

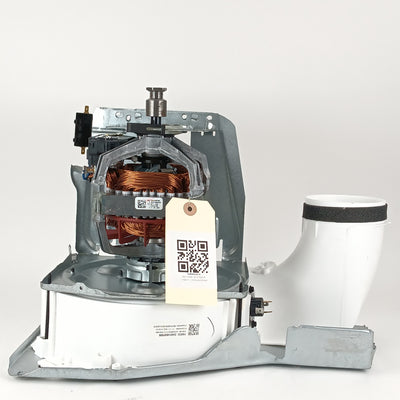

- Blower Motar - WE17X23056

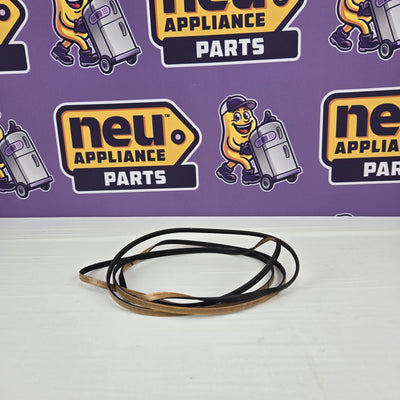

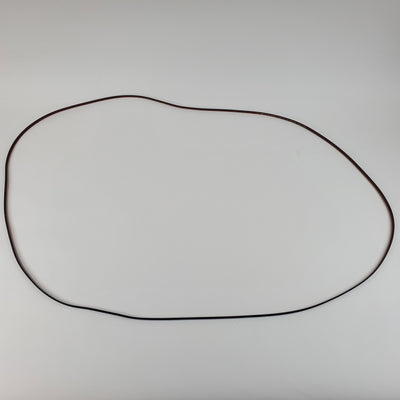

- Belt – WE03X29897
- Door Catch - WE01X25316
Need Parts Today?
We ship same/next day – elements, bearings, purple wire kits, everything.
